Ballast reinforcements and railway sub-ballast
Track reinforcements: Reinforcement of ballast and sub-ballast of railways
Solutions tested and approved on the world's major rail networks.
The StrataBase geogrid or the geocélula Strataweb, arranged in the ballast and sub-ballast layers or between one of these and the subgrade, provide reinforcement to the railroad structure maximizing its performance_cc781905 -5cde-3194-bb3b-136bad5cf58d_e minimizing intervention and repair costs.
With the ability to keep granular material confined, these reinforcements ensure a maintenance of the railroad structure and its properties.
Track Reinforcements: Reinforcement of ballast and sub-ballast of railways
Operation
More than one utility: The improvement provided by the StrataBase and StrataWeb boosters is attributed to three key mechanisms:
-
Lateral constraint of displacements: primary mechanism of reinforcement that can be translated as a lateral constraint of the base/sub-base aggregate (ballast/sub-ballast) when it is subjected to surface loads.
-
Improved load capacity: as StrataBase and StrataWeb are materials with high tensile strength, they promote greater soil mobilization, generating greater support capacity in addition to reducing the stress on the subgrade.
-
Membrane Effect: When requested, StrataBase and StrataWeb assume a tensioned membrane shape that provides a reaction to the stress supporting the imposed load.
Track Reinforcements: Reinforcement of ballast and sub-ballast of railways
Features
- Reinforcement installed in the granular layer or in the subgrade contact to optimize the application.
- Rigid geogrids perform better than woven and geotextiles.
- The StrataWeb geocell has the best performance among reinforcements.
- Geogrid joint strength and stiffness are the most important parameters.
Track Reinforcements: Reinforcement of ballast and sub-ballast of railways
benefits
Track Reinforcements: Reinforcement of ballast and sub-ballast of railways
Concept
I would like to know more about the concept and improvement provided by the reinforcements to increase load bearing, visit our link below and learn about our platform on application and operation dos geosynthetics.

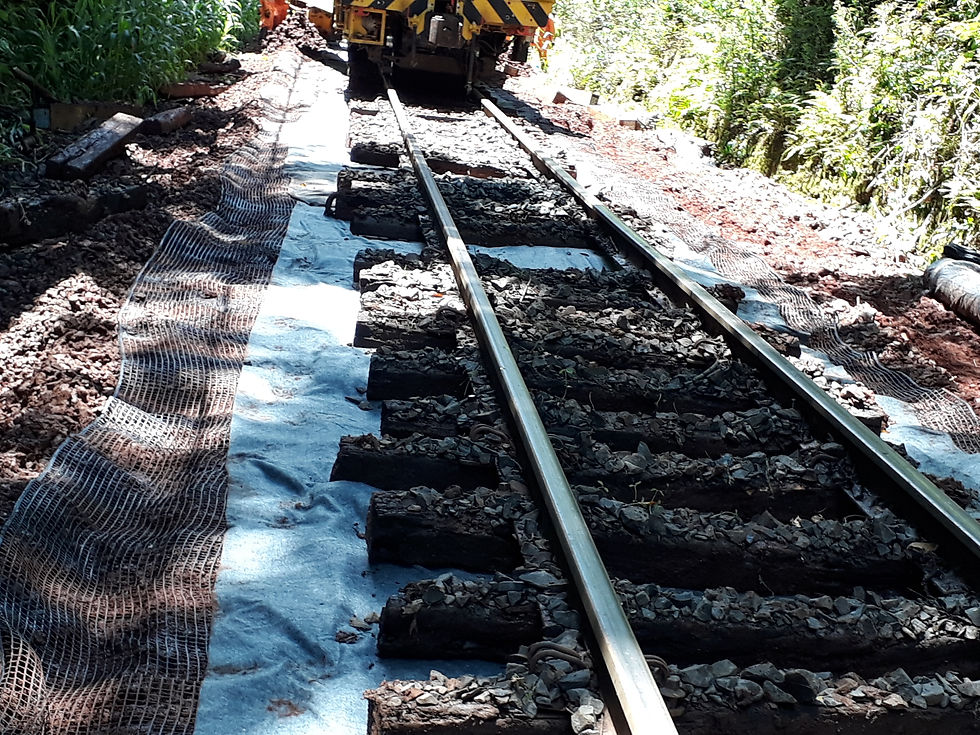

Photos
Track Reinforcements: Reinforcement of ballast and sub-ballast of railways
Track Reinforcements: Reinforcement of ballast and sub-ballast of railways
Products
StrataBase Geogrids
StrataBase® is a rigid biaxial geogrid that offers structural reinforcement for roads, paved and unpaved, through its high rigidity, dimensional stability and high strength of its connections.
StrataWeb Geocells
StrataWeb® geocells are produced with strips of extruded polymer welded into joints that, when expanded, form a three-dimensional honeycomb mattress.
StrataGrid Geogrids
StrataGrid® is a geosynthetic
high performance project designed to enable soil reinforcement projects in containment systems, soft soil improvement_cc781905-5cde-3194-bb3b-136bad5cf58d-de905-57 136bad5cf58d_base reinforcement of highways, with safety and ease of application.
Track Reinforcements: Reinforcement of ballast and sub-ballast of railways
related applications
Reforço de vias no pavimentadas
reinforcements de floor base
Track Reinforcements: Reinforcement of ballast and sub-ballast of railways
related sectors
transport infrastructure
